A bag of Shellfish Carboxymethyl Chitosan (CMCS) does not begin as a white powder.
It begins with something far less refined:
crustacean shell material.
Between those two points lies a multi-stage manufacturing process involving raw-material preparation, chitin recovery, conversion to chitosan, chemical modification, purification, drying, and quality control.
And one stage changes everything:
carboxymethylation.
That is the step that transforms conventional shellfish chitosan into CMCS—a derivative with substantially broader aqueous solubility and a different functional profile.
The simplified journey looks like this:
Shellfish Source → Chitin → Chitosan → Carboxymethylation → Purification → Drying → Testing → CMCS Powder
But each arrow represents a controlled manufacturing step.
Let’s follow the material through the process.
Want to Evaluate the Finished Material?
Understanding manufacturing is useful. Testing the actual production material is better.
View Shellfish Carboxymethyl Chitosan & Order a 25 g Sample
For qualification, use a simple sequence:
Review Specification → Request COA → Test 25 g → Validate → Request Bulk Supply

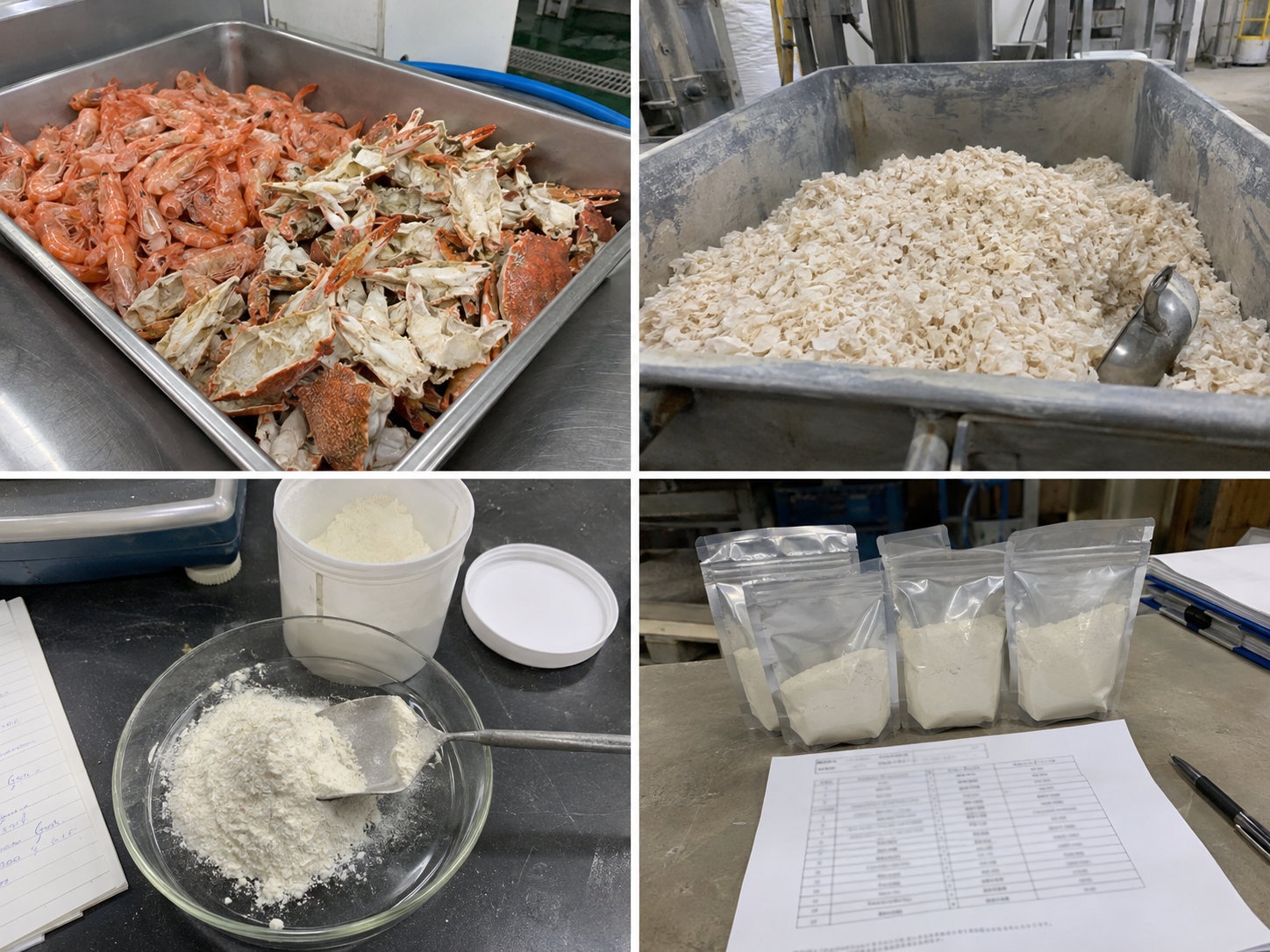

Stage 1: It Starts With a Chitin-Rich Marine Raw Material
Commercial shellfish chitosan typically begins with crustacean processing material, commonly associated with shrimp and crab shells.
These shells are not pure chitin.
They contain a mixture of components that may include:
- chitin;
- proteins;
- minerals;
- pigments;
- moisture;
- other organic matter.
So manufacturers cannot simply grind shells into powder and call the result chitosan.
The first manufacturing objective is separation.
The chitin-rich fraction has to be isolated from the other components before it can become useful chitosan.
For more about biological origin, see Marine Carboxymethyl Chitosan.
Stage 2: Recovering Chitin From the Shell Matrix
This is where raw shell material begins becoming a technical polymer feedstock.
Traditional crustacean chitin processing generally involves steps designed to remove unwanted mineral and protein fractions.
Conceptually, the process looks like:
Cleaned Shell Material
↓
Mineral Removal
↓
Protein Removal
↓
Additional Purification
↓
Chitin-Rich Material
The precise processing sequence, concentrations, temperatures, washing conditions, and equipment can vary between manufacturers.
That matters.
Raw-material source and processing conditions can influence the characteristics of the chitin that enters the next stage.
So even before CMCS exists, manufacturing consistency has already become important.
Stage 3: Chitin Has to Become Chitosan First
This is a distinction that buyers sometimes miss.
CMCS is not produced directly from shellfish shells.
First:
chitin must become chitosan.
Chitin contains a high proportion of acetylated units.
During deacetylation, some of those acetyl groups are removed, increasing the proportion of glucosamine units and free amino groups characteristic of chitosan.
The result is shellfish-derived chitosan.
One of the most important parameters associated with this transformation is the:
Degree of Deacetylation (DDA).
DDA can influence:
- charge behavior;
- solubility;
- reactivity;
- interaction with other compounds;
- suitability for subsequent chemical modification.
At this point, the manufacturer has produced the starting polymer for CMCS.
But it is still not Carboxymethyl Chitosan.
Stage 4: The Transformation — Carboxymethylation
This is the defining step.
Native chitosan contains reactive amino and hydroxyl groups along its polymer chain.
During carboxymethylation, carboxymethyl groups are introduced onto the chitosan structure.
Published manufacturing literature commonly describes direct carboxymethylation using alkaline conditions and a carboxymethylating reagent such as monochloroacetic acid. Isopropanol/water systems are frequently described in laboratory synthesis methods.
Conceptually:
Shellfish Chitosan
↓
Activation Under Controlled Conditions
↓
Carboxymethylation
↓
Carboxymethyl-Modified Chitosan
This modification changes the polymer’s behavior.
Most notably, suitable CMCS grades can achieve substantially improved water solubility compared with native chitosan.
For a deeper explanation of why, read Why Carboxymethyl Chitosan Is Water Soluble.
The Manufacturing Conditions Decide Where Modification Happens
This is where CMCS chemistry becomes more interesting.
Carboxymethyl groups do not necessarily attach at only one location.
Depending on the chemistry and reaction conditions, manufacturers can produce different derivative patterns, including:
O-Carboxymethyl Chitosan
N-Carboxymethyl Chitosan
N,O-Carboxymethyl Chitosan
Published reviews show that factors such as alkalinity, temperature, reagents, and reaction conditions can influence whether substitution occurs predominantly on hydroxyl groups, amino groups, or both.
This is one reason a buyer should never assume:
“CMCS is CMCS.”
The name tells you the derivative family.
The specification tells you much more about the actual material.
Stage 5: Degree of Substitution Becomes a Critical Number
Once carboxymethyl groups have been introduced, manufacturers need a way to describe the extent of modification.
One important parameter is the:
Degree of Substitution (DS).
In practical terms, DS helps describe how extensively the chitosan backbone has been modified with carboxymethyl functionality.
Why does this matter?
Because the extent and pattern of substitution can influence properties such as:
- aqueous solubility;
- charge behavior;
- polymer interactions;
- swelling;
- film formation;
- viscosity.
Research on CMCS synthesis consistently shows that reaction conditions affect substitution and final polymer properties.
So DS is not merely a number to fill a specification sheet.
It is part of the story of how the material was manufactured.
Stage 6: The Reaction Is Finished. The Product Isn’t.
At the end of carboxymethylation, the reaction mixture contains more than the desired polymer.
The CMCS must be separated and purified.
Depending on the manufacturing process, downstream operations may involve combinations of:
- neutralization;
- precipitation;
- filtration or centrifugation;
- washing;
- solvent removal;
- purification.
Published synthesis procedures commonly include washing and separation steps after carboxymethylation before the final material is dried.
This stage matters because the objective is no longer:
“Did carboxymethylation occur?”
It becomes:
“Can we recover a clean, consistent finished polymer?”
Stage 7: Washing Is More Important Than It Sounds
“Wash the product” sounds like a minor manufacturing detail.
It isn’t.
Purification and washing help separate the desired polymer from unwanted reaction components and by-products.
The effectiveness of this stage can influence the quality of the final powder.
Depending on grade and intended application, quality considerations may include:
- residual processing materials;
- ash;
- moisture;
- purity;
- color;
- solution clarity.
This is why two CMCS products produced through broadly similar chemistry can still have different finished specifications.
Reaction chemistry creates the derivative.
Downstream processing helps create the commercial product.
Stage 8: From Wet Polymer to Dry CMCS Powder
After purification, the material still has to become a stable form that can be packaged, shipped, weighed, and formulated.
That requires drying.
Different research and manufacturing processes may use different drying approaches depending on the material and production objective.
After drying, additional operations can include:
Drying → Milling → Sieving → Homogenization → Packaging
The goal is a consistent powder suitable for handling and formulation.
Particle appearance alone, however, does not prove quality.
Two white powders may look almost identical while having different:
- DS;
- DDA;
- molecular weight;
- moisture;
- viscosity;
- solubility.
That is why visual inspection is only the beginning.
Stage 9: The Batch Goes to Quality Control
This is the point where manufacturing becomes measurable.
A finished batch should be evaluated against its target specification.
Depending on the product grade, relevant parameters can include:
| Test | What It Helps Verify |
|---|---|
| Appearance | Basic physical conformity |
| Degree of Substitution | Extent of carboxymethyl modification |
| DDA | Chitosan backbone characteristics |
| Solubility | Aqueous performance |
| Molecular Weight | Polymer-size characteristics |
| Viscosity | Solution/process behavior |
| Moisture | Dry-product quality |
| Ash | Inorganic residue |
| Purity | Overall material qualification |
Not every manufacturer reports exactly the same panel.
The important point for a buyer is to identify which specifications matter to the intended application.
Stage 10: COA — Where Manufacturing Meets Procurement
Once the batch passes quality-control requirements, analytical results can be documented through a Certificate of Analysis (COA).
This is where the manufacturing story becomes relevant to procurement.
The product name tells you:
Shellfish Carboxymethyl Chitosan
The specification tells you:
what range the material is expected to meet.
The batch-specific COA tells you:
what was measured for the supplied batch.
Chitosan Global states that its products are supplied with batch-specific COA documentation and provides sample-before-bulk purchasing routes.
That documentation becomes particularly valuable when moving from laboratory work to repeated commercial orders.
Why Manufacturers Don’t Publish the Exact Recipe
You may find research papers giving specific reagent ratios, temperatures, reaction times, and laboratory procedures.
That does not mean those conditions represent the commercial manufacturing process used for every Shellfish CMCS product.
Industrial producers may optimize:
- raw-material preparation;
- reagent concentration;
- reaction sequence;
- temperature;
- mixing;
- reaction time;
- purification;
- solvent recovery;
- drying.
Those details may be proprietary.
A supplier therefore does not need to disclose every manufacturing parameter for a buyer to qualify the product.
For most buyers, these are more useful:
Source + Specification + COA + Sample Performance + Batch Consistency
Does Manufacturing Affect Water Solubility?
Absolutely.
Carboxymethylation is responsible for introducing the functionality associated with CMCS’s improved aqueous behavior.
But the final result depends on how modification occurs.
Published research demonstrates that reaction conditions influence substitution pattern and degree of substitution, which in turn can affect solubility and other material properties.
That is why “water-soluble CMCS” should still be verified through the actual product specification.
Learn Why Carboxymethyl Chitosan Is Water Soluble
What Happens After Manufacturing? The Application Decides
Once CMCS passes quality control, its next journey depends on the buyer.
A food researcher may turn it into a coating.
A pharmaceutical researcher may investigate a hydrogel.
A materials scientist may cast a film.
A formulator may combine it with another polymer.
For those application-specific topics, continue to:
Shellfish CMCS for Food Preservation
Shellfish CMCS for Drug Delivery
Benefits of Shellfish Carboxymethyl Chitosan
This keeps the manufacturing question separate from the performance question.
Can Source Change the Manufacturing Route?
Yes.
The carboxymethylation stage may share similar chemistry across different chitosan sources, but the starting-material pathway differs.
Shellfish CMCS begins with crustacean chitin.
Mushroom CMCS begins with fungal chitosan.
BSF CMCS begins with insect-derived chitin/chitosan.
Those differences can influence upstream processing and sourcing requirements even when the final materials all belong to the CMCS family.
For source comparisons, see:
Shellfish CMCS vs Mushroom CMCS
From Factory Process to Your Bench
The manufacturing process ends when the supplier releases the material.
Qualification begins when you receive it.
A useful workflow is:
1. Review the specification
↓
2. Review the batch COA
↓
3. Order a small sample
↓
4. Test dissolution
↓
5. Test in the actual formulation
↓
6. Compare results with your target
↓
7. Move to bulk only after validation
Order a 25 g Shellfish Carboxymethyl Chitosan Sample
For commercial quantities and sourcing information, visit Shellfish Carboxymethyl Chitosan Supplier.
Frequently Asked Questions
How is Shellfish Carboxymethyl Chitosan made?
Shellfish-derived chitin is processed into chitosan, which is subsequently chemically modified through carboxymethylation. The product is then purified, dried, and tested against the required specification.
Is CMCS made directly from shrimp shells?
Not directly. Shellfish material first provides chitin, which is converted into chitosan before the carboxymethyl modification step.
What chemicals are used to manufacture CMCS?
Published direct-carboxymethylation methods commonly describe alkaline conditions with reagents such as monochloroacetic acid, often in isopropanol/water systems. Commercial manufacturing conditions vary and may be proprietary.
What is Degree of Substitution in CMCS?
DS describes the extent of carboxymethyl substitution on the polymer and is an important specification because it can influence the material’s physicochemical behavior.
Why is Shellfish CMCS water soluble?
Carboxymethyl groups introduce additional hydrophilic and ionizable functionality into chitosan, enabling broader aqueous solubility than native chitosan.
Are all Shellfish CMCS products manufactured identically?
No. Raw materials, reaction conditions, substitution pattern, purification, drying, and target specifications can vary between manufacturing processes.
